If your new Body Armor 4X4 bumper accommodates up to a 10K lbs. winch here is a guide to help determine what winches will fit.

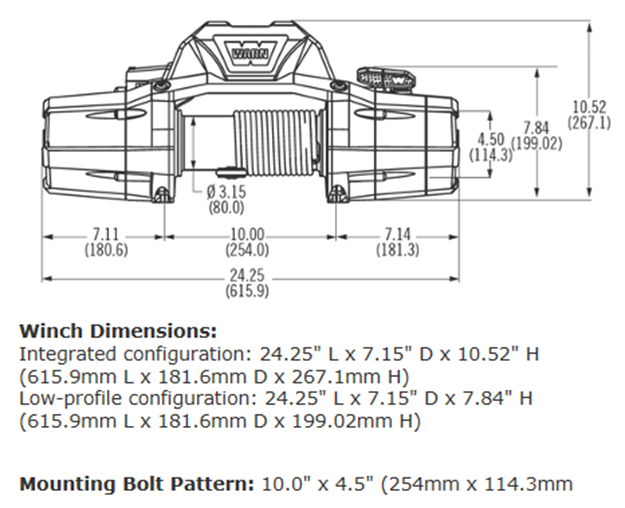

The use of winches larger then the manufacturers recommended maximum winch size is highly discouraged and could result in vehicle mounting point failure. The bumper accommodates most aftermarket 10,000lbs winches. We put one of the largest in this class (Warn Zeon) as an example. If you have a specific winch in mind you can compare it with the dimensions of the Warn Zeon 10,000 lbs. winch and as long as it is comparable in size you will be good to go. We have included a diagram with dimensions included of the Warn Zeon 10,000 lbs. winch below for your convenience.
